Timeseries Data To Forecast Stock Prices Using Convolutional Neural Networks

Erez Katz writes about Betting On US Defense Stocks

by Erez Katz, CEO and Co-founder of Lucena Research.


Last week we discussed how configuring a deep net infrastructure to accommodate timeseries data as trends vs. point-in-time could increase the accuracy of predicting stocks’ future performance. We based our theory on what we know has worked well for deep learning in practice. Classification in the context of computer vision such as handwriting recognition, natural language processing and speech recognition are all predicated on some visual representation of input data whether its training data, testing data or production data. The networks are trained via training data (also called labeled data), which is historical input data paired with its corresponding output. In our case, patterns of features that describe the state of a stock and its corresponding return outcome, f(x) = y.

How Does A Deep Neural Net Model Predict An Outcome?

The concept behind deep nets is that the networks are able to classify -- through thousands of thousands of iterations of trial and error -- complex relationships between certain characteristics of an image and its corresponding classification. In many cases, these relationships are so subtle and deep that they exceed the limits of our brains to comprehend. As scientists, all we can do is control the learning process and assess the outcome, often in amazement! This is one of the reasons that I find AI/deep learning so revolutionary and transformational, even at such an early stage.

Take, for example, the seemingly trivial task of recognizing a bird within an input image. The deep learner is able to breakdown the image into a pixelated representation, with many thousands of pixels. It then sequences the image through receptive fields (convolutional transformation). Subsequently, it is then able to distinguish with high accuracy meaningful patterns (relevant to the bird’s image) from background pixelated noise. The following network diagram demonstrates a fairly typical representation of the layers used to accurately classify an object (in our case, a bird) within an image.

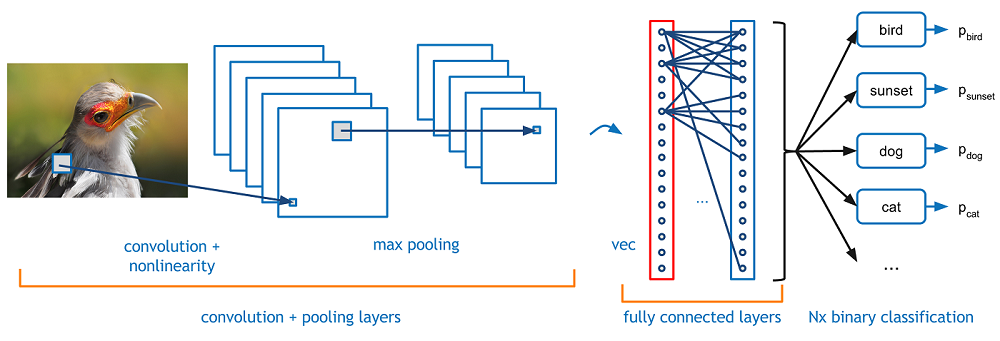

Image 1: A typical convolutional layered diagram. Credit: Adit Deshpande CS Undergraduate UCLA(’19)
In principle, the convolutional layers and the max pooling layers are disciplines developed to reduce the dimensionality of the input layer so that it is vectorized most efficiently for error minimization. The fully connected input layers are tasked with minimizing the gaps between the network outcome and the desired outcome. This is done mathematically through a cost function reduction (summing up partial derivatives and discerning the slope of the cost function) to adjust the weights and biases parameters between the neurons of the fully connected layers in order to reduce the cost function to a desired local minima. These processes, gradient descent and backpropagation are beyond the scope of this article, but feel free to click here to learn more.

A typical learning process feeds a large number of images of birds along with images that do not contain birds. In turn, the convolutional neural network (CNN) “learns” to effectively recognize subtle but distinctive bird-like patterns (such as a beak, feathers or wings) and to distinguish a bird pattern from the broader image representation.

Come to think of it, the very same concept can be attributed to stock market predictions. Imagine all the different types of time-series data that together can describe the distinct state of a publicly traded company. In theory, we can feed into a convolutional neural network many samples of the public company’s state paired with its future price outcomes. If the network is constructed properly, and the data is indeed predictive, the network will be able to classify “winning” patterns in the past and subsequently recognize new “winning” patterns in the future.

Taking The Concept Of Timeseries Image Representation One Step Further

Predicting future prices based on historical patterns is not new and has been occupying investors since the inception of the stock market in 1817. However, since information travels so efficiently, recognizing traditional pattern formations is just not good enough for profit. The goal of feeding timeseries data into CNNs is meant to identify complex predictive patterns unrecognizable to the naked eye, enabling investors to scientifically validate an investment algorithm and act on investment opportunities well before it is exploited by the masses.

We talked about taking features (also called factors) over time and assessing them daily as they describe the state of publicly traded companies.

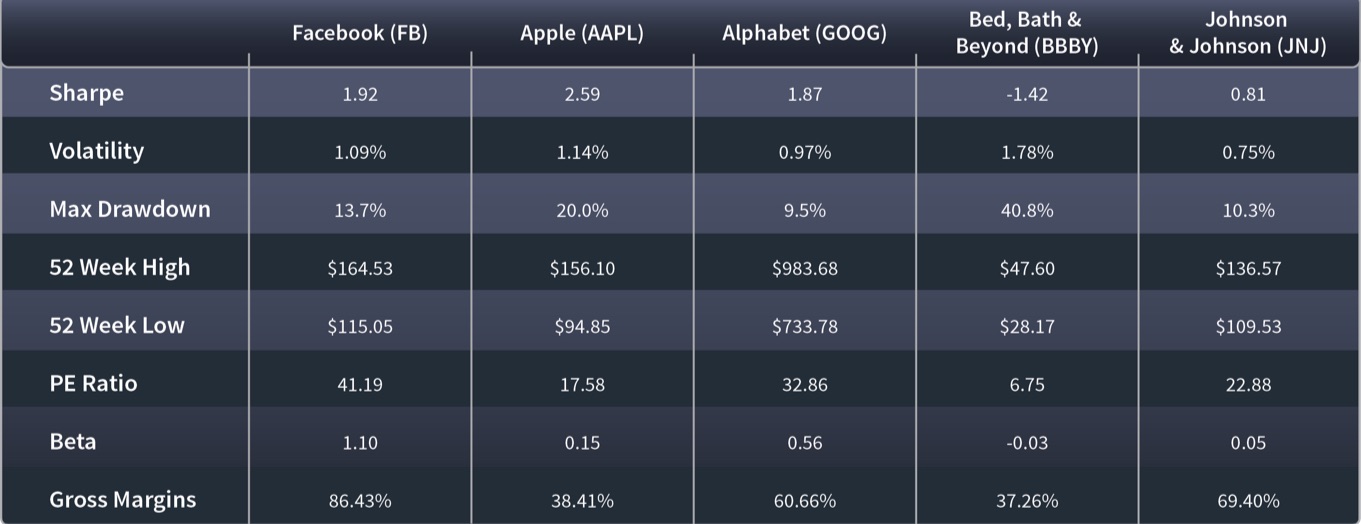

Image 2: Sample features across five publicly traded companies. Each feature contains its respective daily value per company. We are depicting eight features both fundamentals and technicals. Together they describe the state of a company.

Clearly, the values above are not conducive to recognizing complex patterns for a few reasons:

  1. 1) The data elements are not measured homogeneously:
    1. Some are in dollars.
    2. Some are in percent.
    3. Some are fractions.
  2. The data is provided as point-in-time values. No trend information is available in the above example. Even if we take the value of stochastics, moving averages and the like which contain historical trend-relative value, the data is still somewhat stale and doesn’t provide enough details for complex image analysis.
  3. Each feature value for a given stock is self-contained and isolated. In other words, there is no clear peer-relative measurement.

In order to resolve the shortcomings of the raw features data, we have migrated our raw data into a more robust feature set -- a process called “feature engineering.” In turn, we’ve created ranked features. So, we have normalized all the values of the features into a Gaussian distribution representation (normally distributed).

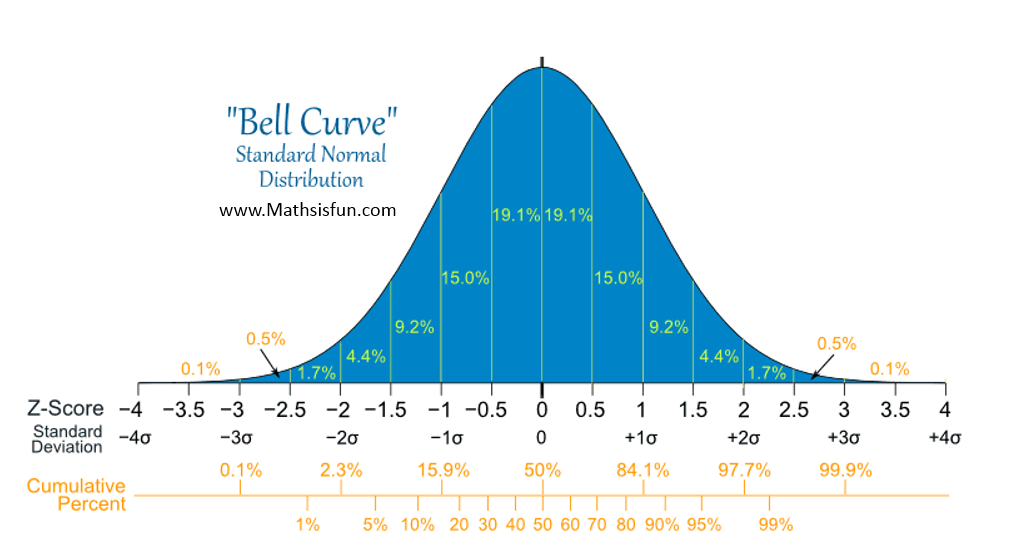

Image 3: Sharpe ratio representation using Z-score. The normal distribution guarantees that each Sharpe value for a specific stock falls within a well-defined range and is measured in relationship to the mean of its peers (i.e. S&P500 or the Russell 1K).

Now that we have ranked each of our raw features, we can assess the historical trends of our ranked features over time. For example, we can tell how Apple’s Sharpe ratio transformed over the last 21 days relative to its peers. Ranked features over time are much more potent than raw features as they do more than provide trend information. The trend is also measured against a company’s peers vs. in isolation.

At this point we are ready for the last step of transforming the ranked time series features into rich images. Rather than processing the underlying trend graph as the image, we’ve identified a novel transformation algorithm that is much more exciting. Gramian Angular Difference Field (GADF) is a time series to image transformation algorithm that measures the frequency and the sum of the angles of the curves described by the time series by which a flat 1-D data is ultimately transformed into a two-dimensional array. For more information, please refer to a white paper written by Zhiguang Wang and Tim Oates from the Department of Computer Science and Electric Engineering at the University of Maryland.

Apple TTM Sharpe Rank (Trailing 12 month)

Apple TTM Sharpe Rank (Trailing 12 month) – Gramian Angular Transformation

Apple TTM Asset Turnover Rank (Trailing 12 month)

Apple TTM Asset Turnover Rank - Gramian Angular Transformation

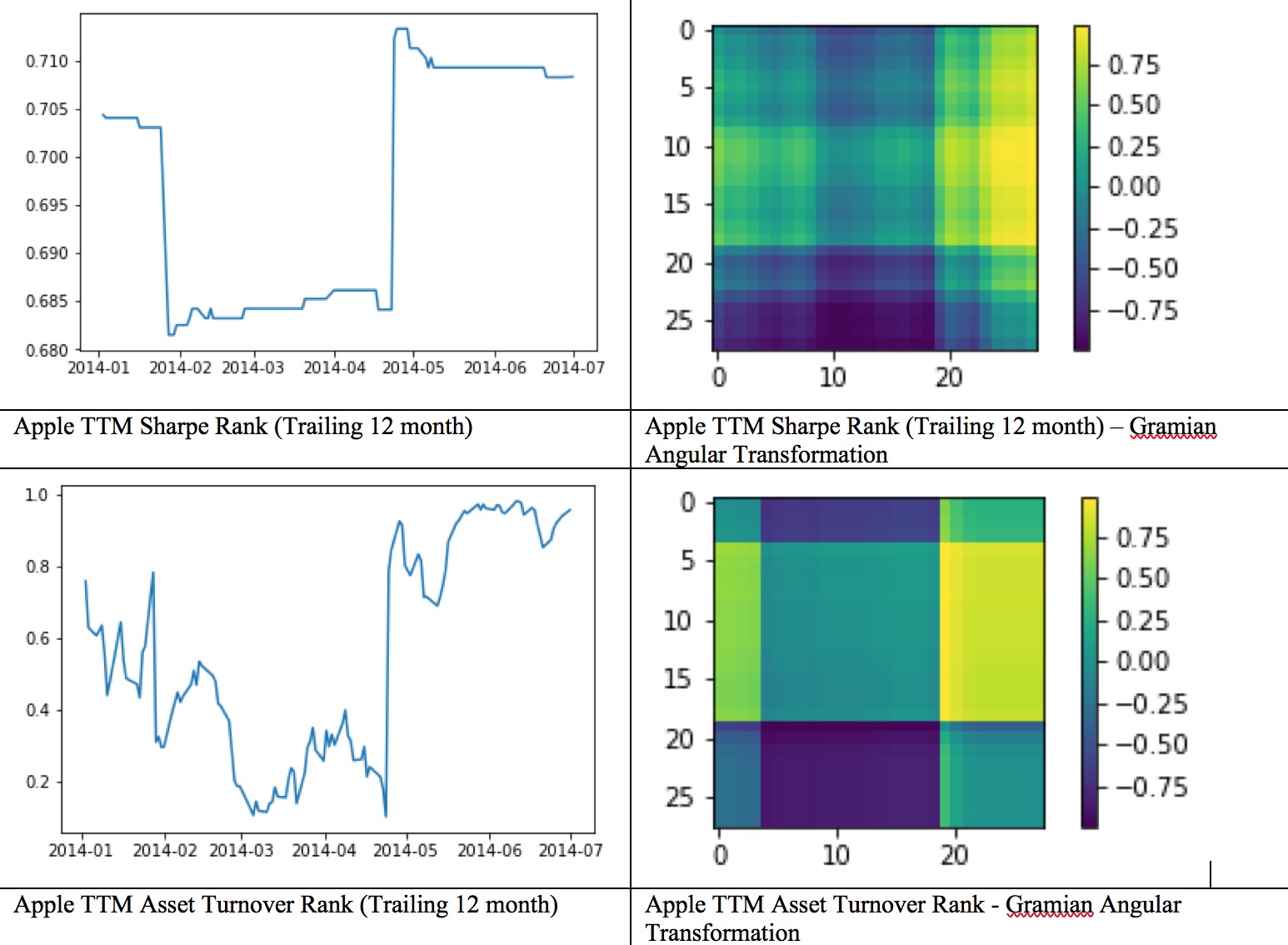

Image 4: The images above (on the left) are pairs of our ranked features and their corresponding rich graphical representation (on the right). The beauty of such transformations is that images are clearly represented homogeneously with richer colors, shading scales and patterns.


We’ve covered quite a bit this week but hopefully you are now able to experience first-hand what it takes to conduct meaningful, quantitative research. It is also important to note that the algorithm, on its own and no matter how sophisticated and effective, is not sufficient enough to achieve a successful outcome. The nature of the data and its inherent predictive power is what ultimately drives the algorithm’s success. Lucena’s value proposition has always been and will continue to be to enable investment professionals with the best data and tools available to differentiate them from the crowd and increase their odds for success.

More to come on this topic in future newsletters.
